Syntax helpdesk.txt

The [PARAMETER TAG] take 0,1 or 2 lines as input

The [HOST]
Line 1: Visible part in selector
Line 2: startup command line
-connect ip:port Viewer ip and port
-noregistry :needed for SC
-plugin : Use encryption, need to be before -connect
-id id : The id used for repeater connection, -connect is in that case the repeater ip port

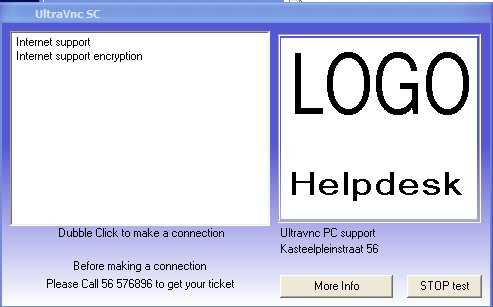

SAMPLE





[TITLE]
UltraVnc SC

[HOST]
Internet support
-connect 192.168.1.102:5500 -noregistry

[HOST]
Internet support encryption
-plugin -connect 192.168.1.102:5500 -noregistry

[TEXTTOP]
Dubble Click to make a connection

[TEXTMIDDLE]
Before making a connection

[TEXTBOTTOM]
Please Call 56 576896 to get your ticket

[TEXTRBOTTOM]
(empty to clean line)

[TEXTRMIDDLE]
Kasteelpleinstraat 56

[TEXTRTOP]
Ultravnc PC support

[TEXTCLOSEBUTTON]
Close

[TEXTBUTTON]
More Info

[WEBPAGE]
http://www.ultravnc.net

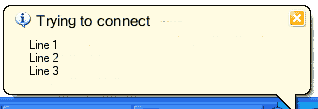

[BALLOON1TITLE]
Trying to connect

[BALLOON1A]
line 1

[BALLOON1B]
line 2

[BALLOON1C]
line 3

[BALLOON2TITLE]
Connected to

[BALLOON2A]
line test1

[BALLOON2B]
line test2

[BALLOON2C]
line test3

[DIRECT]
Balloon1 = While trying to connect
Balloon2 = During connection

If you add [DIRECT] and only have 1 [HOST] defined, the menu is not shown
and the connection is direct started. (can be useful for scripting)
[DIRECT] doesn't have a parameter line


NEW FOR REL1.00




[ENTERCODE]
Enter Your ID

[DEBUG]

[DEBUG] opens a console window with debug info
[ENTERCODE] This is used when you specify 1 [HOST] and use -id xxxxxx
In this case the standard menu is skipped and xxxxx is ignored, a input window
is opened to let the user enter an id.

Enter Your ID: Text that is shown on the enter.bmp [TEXTBUTTON] if not exist, button is removed

Custom enter.bmp
+keep same size
+transparent color RGB(247,255,255)

ONLY FOR SC III
[HOST]
Technical Support SSLPROXY
-id 12345 -sslproxy -connect 216.55.178.47:443 -noregistry
#192.168.1.101==repeater ip
#SSL -> :443 needed
