VPN-less Remote Control via VNC Part4

Part1 Part2 Part3 Part4
Select the OPEN button to connect to your SSH Server. You will need to authenticate
to the SSH server to establish the SSH tunnel.

With this SSH tunnel established, you will now use VNCViewer to connect to the
machine you configured PuTTY for (172.16.0.101)
In the VNC Server: edit box, enter localhost (127.0.0.1). You will want to select the
Options button and select your Format and Encoding settings as described in the
graphic. When you press the Connect button, it will route 5900 local port through the
SSH tunnel to the 172.16.0.101 address (according to the PuTTY configuration).

Likewise you could configure Windows XP Remote Desktop (Terminal Services)
through SSH in the same manner. To include Remote Desktop, add an SSH tunnel like
this:

This configuration would give you both VNC and Remote Desktop (Terminal Services)
access to 172.16.0.101 through the SSH tunnel. Note, the Source port is defined as
127.0.0.2:3389. This is a bit "different". When you open MSTSC.EXE (the Terminal
Services client), you would enter 127.0.0.2 as the connection:
This will connect you to the Terminal Services server of the host machine through an
SSH tunnel.


VNC Repeater and SSH Tunnel

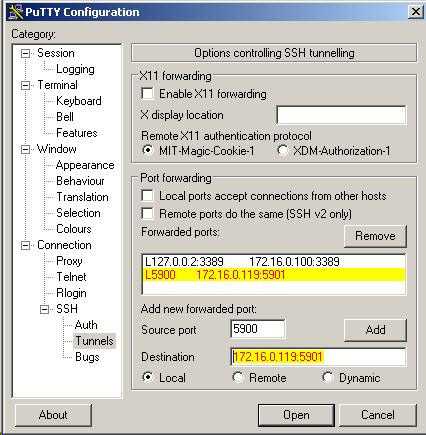

Now, let's combine the VNC Repeater and the SSH Tunnel so that we are able to use
the VNC Repeater through a secure SSH Tunnel. Simply change add the following
SSH tunnel parameters:

NOTE: the source port is 5900, and the destination port is 5901

In the VNC Viewer, connect using these settings:

NOTE: the Proxy/Repeater setting is localhost,
